SAMI Autochopper makes log splitting effortless, safe, and efficient!
Through hard research and development we have developed a traditional log splitter into a modern automatic splitter. Say goodbye to drawbacks, stoppers, hurry and
hard physical work. SAMI Autochopper makes log splitting effortless, safe, and efficient!

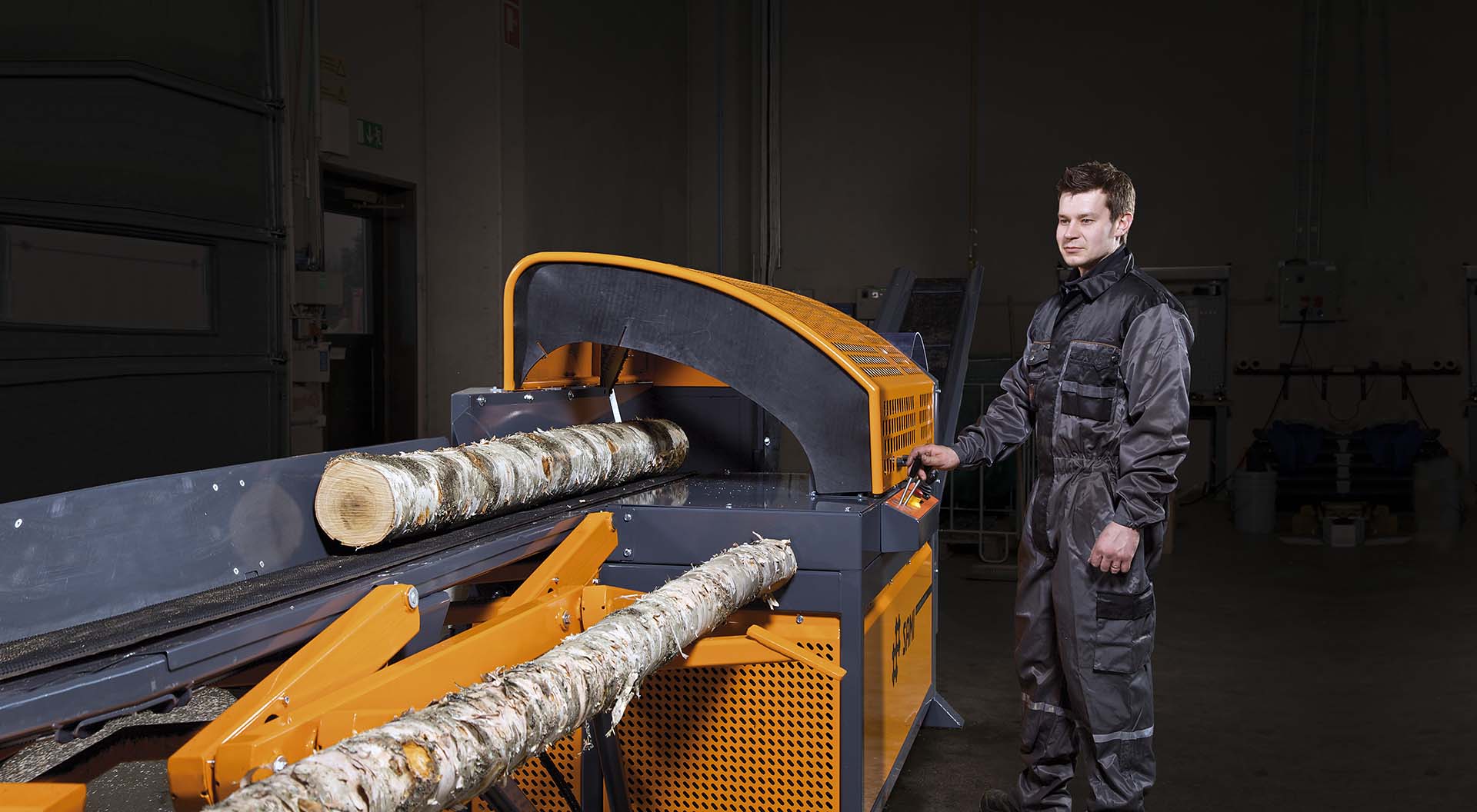

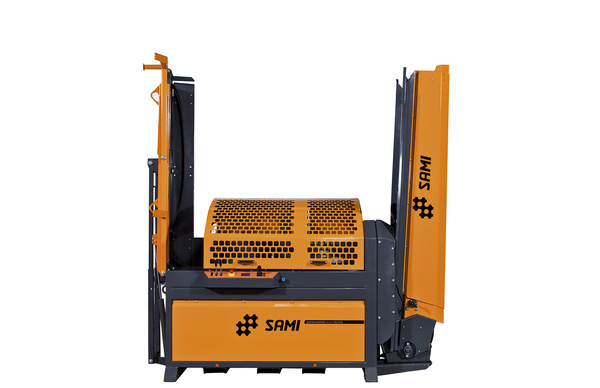

The SAMI Autochopper is a robust firewood processor, at the

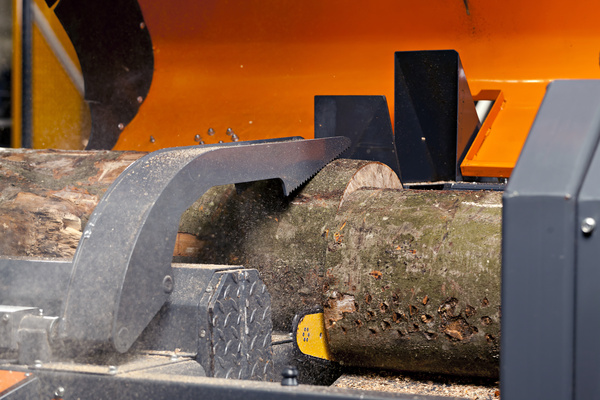

forefront of technology, totally automatic, perfect for a demanding professional use. It’s equipped with 44 cm (17″) chain saw. The beam frame structure gives the

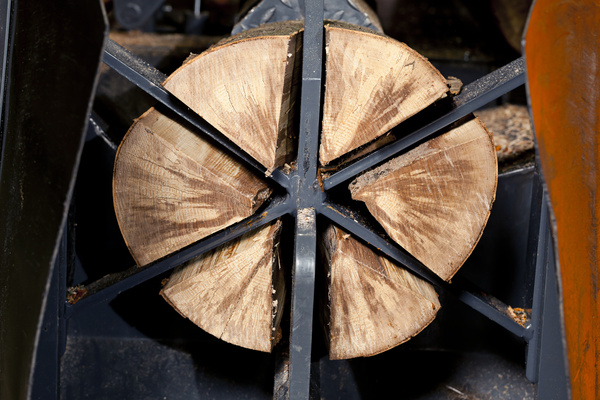

machine extra strength. The splitting wedges are made of extremely strong wear-resistant steel. The machine has a wide selection of accessories for a whole line of

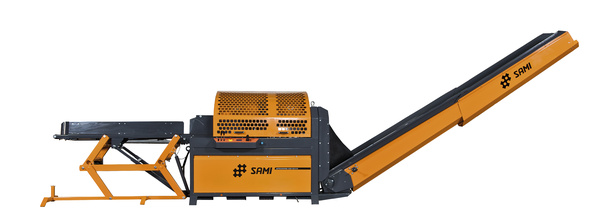

wood supply, such as automatic feeding tables, a sorter, and conveyors, which enables the machine to work practically all by itself.
When it comes to
pricing, the SAMI Autochopper is very competitive, compared to the prices of manually operated machines manufactured for demanding professional use.
Technical Information
| Saw's form of use | Chainsaw |
| Saw's blade size(mm) | Harvester 440 |
| Method of application | Tractor, electric, both |
| Driving force (S110) | 11kW(electric) or 30HP(tractor) |
| Driving force (S185) | 15kW(electric) or 40HP(tractor) |
| Operating voltage | 12V |
| Min/Max log length | 7.9" to 19.7" |
| Splitting force (S110) | 11 t |
| Splitting force (S185) | 18.5 t |
| Cycle time | 4-8s |
| Splitting wedge 2/4-way |
| Control system: Microprocessor |
| Automatic drive |
| Semi-automatic and manual use with joystick |
| Uninterrupted nonstop drive |
| Log feed at feed belt |
| Feed mat reverse |
| Automatic log ram and diameter measurement |
| Automatic blade disconnection |
| Automatic splitting wedge alignment at every cut |
| Automatic cut in half of logs less than 4" |
| Optimization of log ends, 3 alternatives |
| Hydraulic spool valve for an accessory |
| Adapter for the sawduct extractor |
| Fitted tarpaulin |
| Splitting wedge 6, 8, 12-way |
| Hydraulic log jack/working and transport position |
| Cooler for oil |
| Hydraulic sideways rotation of the discharge conveyor |
| Spotlights |
| Hard metal chain |
| Litter separator at the end of the discharge conveyor |
