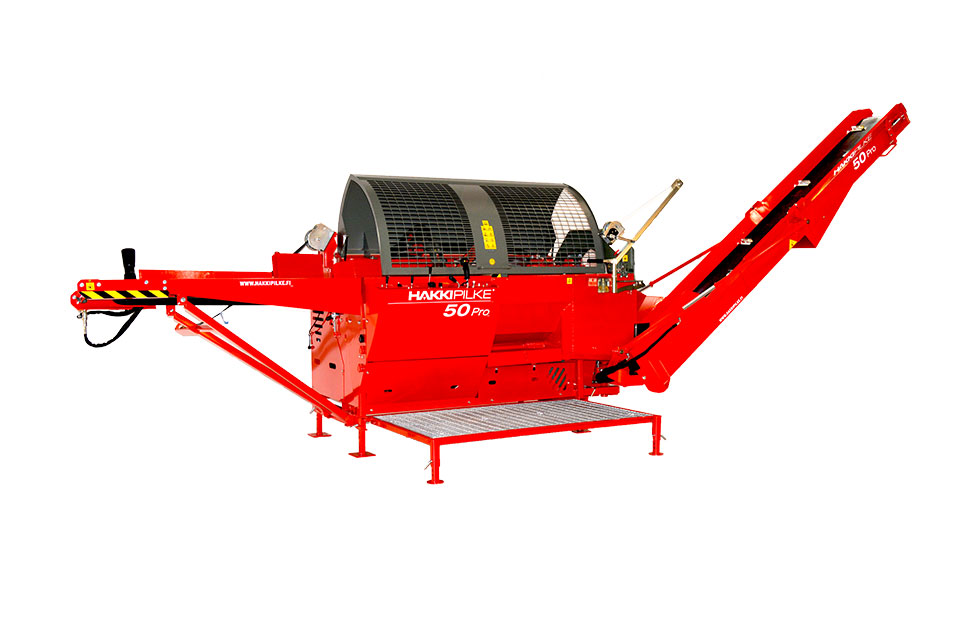

Hakkie Pilke 50 Pro
Product Information
Downloads
Addition Images
Heavy-duty machine with superior performance. The Hakki Pilke 50 Pro was designed in close cooperation with firewood professionals. It has been tested with a variety of wood types across the globe to ensure international viability as a professional-grade machine for industrial firewood production and consistently superior performance in all conditions.
The 50 Pro cuts and splits so efficiently that it can be described as a one-man firewood factory. The machine comes as standard with a wide range of features that improve efficiency and facilitate work. The HakkiCutTM sawing interface makes using the machine fast and ergonomic. Sawing is performed at the press of a button, and the splitting and feeding mechanisms are controlled with a joystick. During cutting, the lowering speed of the saw bar is automatically adjusted according to the resistance, ensuring a fast and efficient process. The log landing plates ensure that even the shortest cut logs land neatly into the splitting groove. The productivity level is unbeatable with the delay-free HakkiSplit™ splitting system with half-stroke function for making short firewood faster. The standard equipment also includes electric chain oil pump, AC 10 automatic chain tensioner, cleaning outfeed conveyor and an adjustable work platform.
Technical Information
| Max log diamter | 18.5" |
| Max wood length | 23.6" |
| Max splitting force | 30 ton |
| Bar | 20" |
| Power source | PTO, electric, or combinaton |
| Splitting blade | 6 way |
| Outfeed conveyor length | 13' |
| Outfeed conveyor width | 15.7" |
| Infeed conveyor dimensions | 11.8" x 9.4' |
| In-feed serial connection kit + valve |
| Hydraulic infeed conveyor |
| Accessory Valve |
| Additional hydraulic infeed roller |
| Infeed guide plate |
| Hydraulic log press |
| Safety cover |

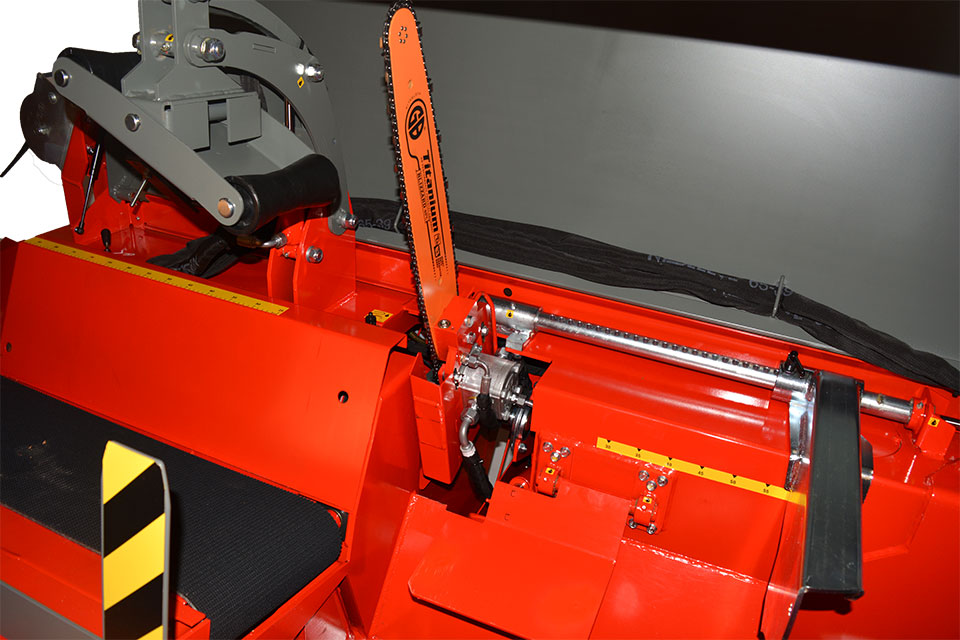

| AC 10 automatic chain tensioner(hydraulic) |

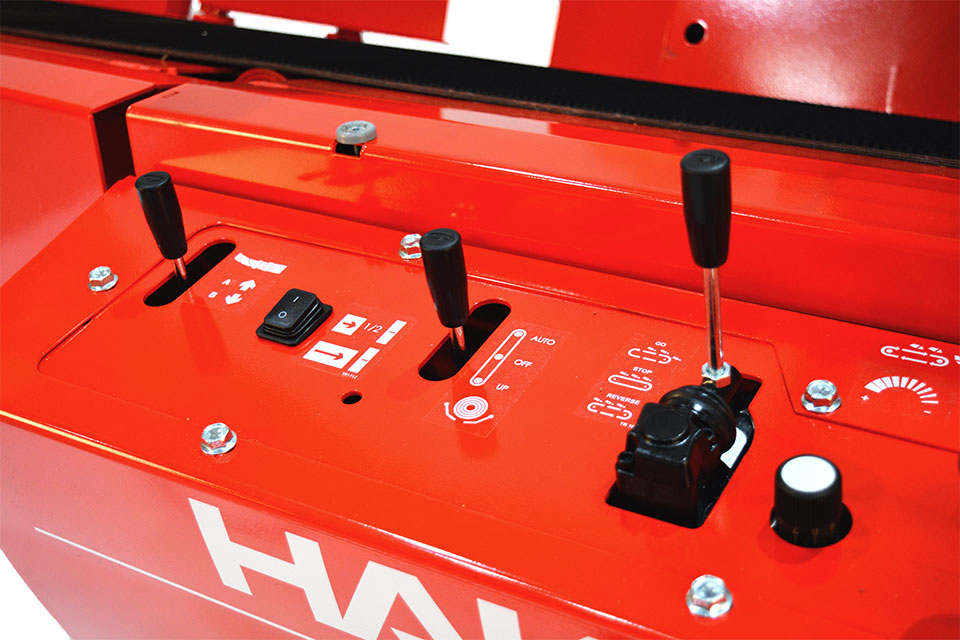

| HakkiCutTM cutting control |
| Automatically optimized saw lowering speed |
| Automatic chain oil lubrication |
| HakkiSplitTM delay free splitting(3 speeds) |
| Hydraulically retracted log measuring device |
| Hydraulic height adjustment of the splitting blade |
| Hydraulic vertically and laterally pivoting output conveyor |
| Outfeed conveyor speed control(+reverse) |
| Cleaning outfeed conveyor |
| Oil cooler |
| Adjustable work platform |

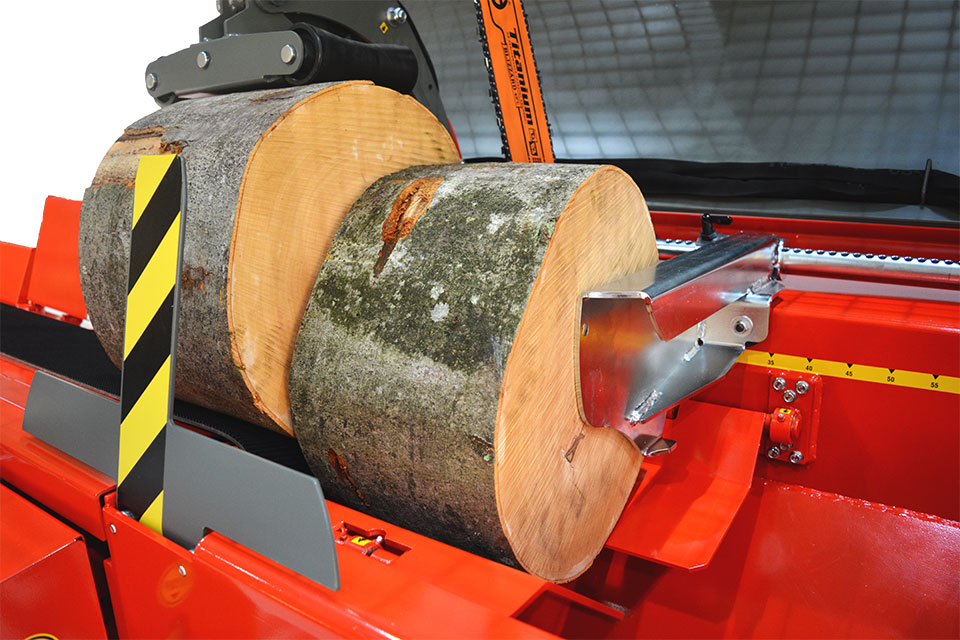

| Guide plates for controlled log landing (landing plates) |
| Data monitoring system |
| Splitting blade 2/4, 8, 12-way |
| Output conveyor extension 1 m |
| Heater for oil |
| Blower sawdust removal (TR) |
