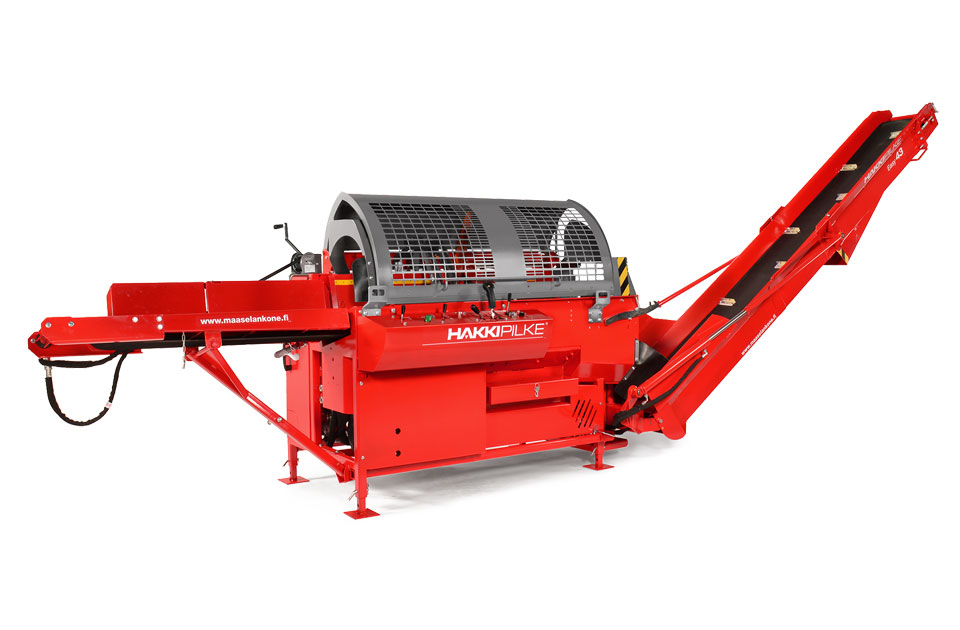

Hakki Pilke 43 Pro
Product Information
Downloads
In terms of the operator, the most significant update is the user interface that provides a fully revamped user experience. HakkiCutTM sawing takes place with the press of a button and always automatically applies the optimal force. Patented hydraulic AC10 chain tensioner and automatic chain lubrication pump ensures that the saw chain and bar last for a long time and provide unparalleled cutting efficiency time and time again. User can set the feed assist mechanism to feed in logs during every splitting motion, ensuring that a new splitting action can always be activated optimally when the pusher’s return motion begins.
Technical Information
| Max log diamter | 17" |
| Max wood length | 23.6" |
| Max splitting force | 15 ton |
| Saw Chain | .404 1.6mm 68 |
| Bar | 18" |
| Power source | PTO, Electric motor, or combinaton |
| Electric motor | 15 kW |
| Splitting blade | 6 way |
| Outfeed conveyor length | 13.1' |
| Infeed conveyor length | 8.2' |
| Hydraulic infeed roller |
| Infeed guide plate |
| Log feed assist mechanism |
| Hydraulic log press |
| AC 10(hydraulic chain tensioner) |
| HakkiCutTM cutting control |
| Automatically optimized saw press mechanism |
| Automatic chain oil lubrication |
| HakkiSplitTM delay free splitting |
| Hydraulically retracted log measuring device |
| Guide plates for falling wood pieces |
| Log guide plates for controlled landing |
| Hydraulic swivel outfeed conveyor |
| Outfeed conveyor speed control(+reverse) |
| Cleaning outfeed conveyor |
| Oil cooler |
| Toolbox |
| Active cover |
| Outfeed conveyor extension |
| Blower saw-dust removal |
| Heater for oil |
| Splitting blade 2/4, 8, 12 way |
