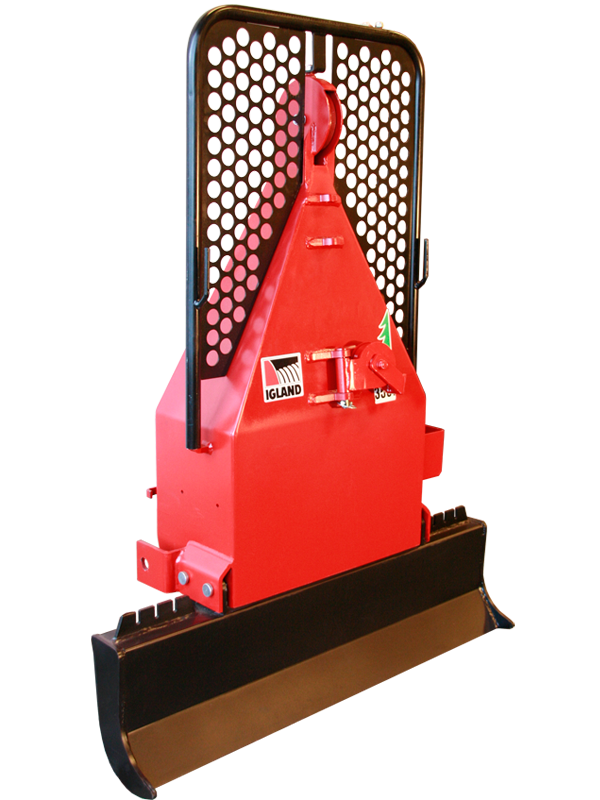

Strong and reliable forest winch, designed for medium tasks. Suitable for smaller tractors. Adjustable pulling point to give better lifting abilities of the timber during winching. The winch is operated with a cord from the tractor seat or at a safe distance to the side. Specially designed hinged logging -plate, which works as a “carrier” of the timber and results in a smoother drive over stumps and rocks. Long coil distance between top block and the drum results in good distribution of wire rope on the drum.



Technical Information

Max pulling capacity - empty drum 3.5 ton
Max pulling capacity - full drum 1.1 ton
Drums 1
Wire rope(theoretical capacity) 233'
Recommended wire rope length 164'
Pulling speed at 540 rpm 2 to 5.5 ft/sec
Necessary power input 22 kW
Ratio 1:5.18
Braking power Min. 3.75 ton
Controls Standard cord operation
Clutch Replaceable Friction pads
Brake Ratchet brake
Mounting 3-point hitch
PTO input 13.8"
Height/Width/Depth 45"/39.4"/14.6"
Weight(w/o wire rope) 441 lbs
For small tractors from 35-70HP

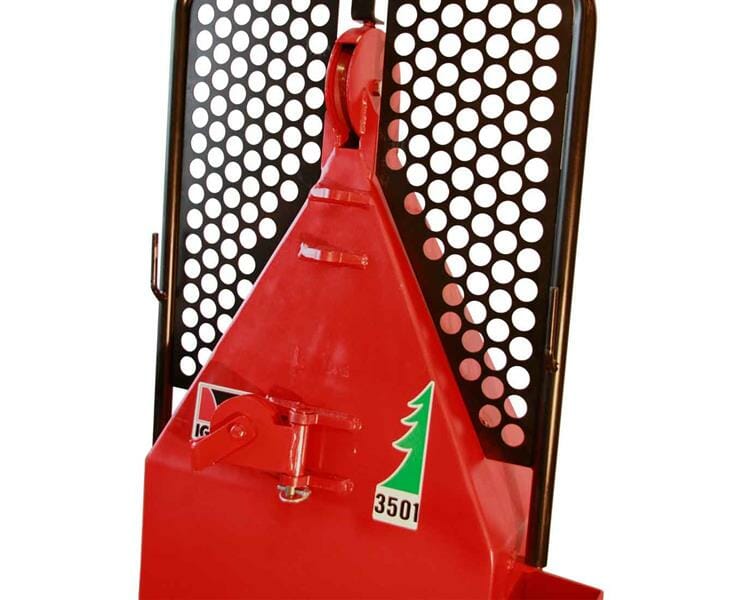

Adjustable height of pulling point

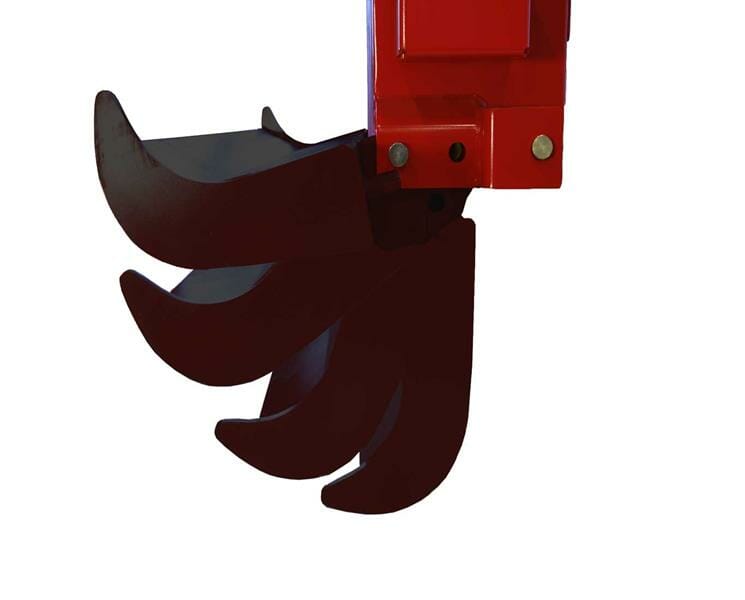

Hinged butt plate 4' wide for smoother drive over stumps & stones
Cable gaurd prevents derailment

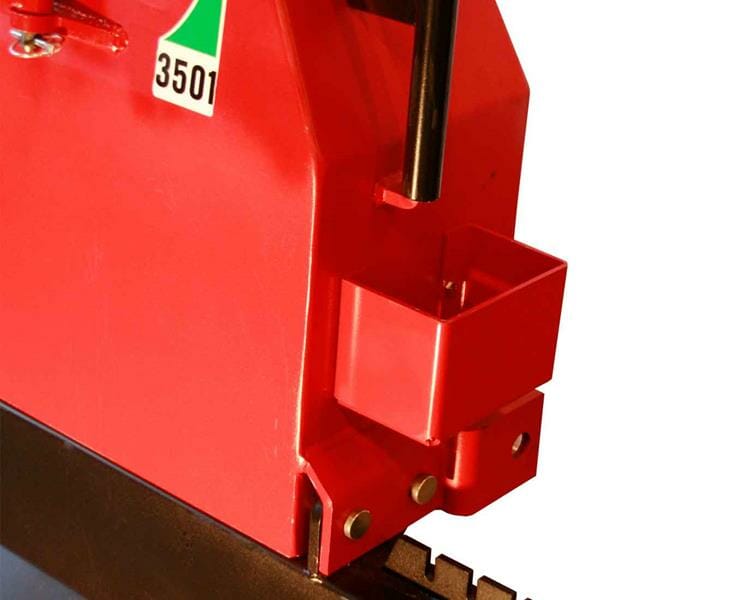

Toolbox
Radio controlled
